Setting up your Blink Video Doorbell

We are very glad to help you set up your new Blink Video Doorbell.

The Blink Video Doorbell camera is weather resistant, has two-way audio‍, and can send notifications with video to your Blink app or Alexa device. If you need more technical information, please visit the Blink Video Doorbell Tech Specs‍.

The Blink Video Doorbell requires the Blink app for setup.

Download the Blink app and create an account

The latest version of the Blink app is always available in your app store. Blink supports most smartphones, tablets, and many Alexa-enabled products.

Select the app store link or scan the QR code to download the latest version of the Blink app.

Blink version 6.23.0*
for iOS 14 and later.

Blink version 6.23.0
for Android v6.0 and later.

Blink version 6.21.0
for Fire OS v7.0 and later.


*If you can't locate the Blink app iOS 6.15.0, please refer to this article: End of Support for Android Version 5 - iOS Versions 12 and 13


To get started with the Blink app, follow the instructions below:

With Blink, you have one user account with one email and one phone number. On log in and certain other actions, a verification number is sent to the mobile number or email address of the account.

Note: If you want to share your account with other users, learn more about setting up a second phone or device.

  1. Launch the Blink App and tap Create Account at the bottom of the screen.
  2. Select your country from the drop-down menu and tap Next.
  3. Confirm your region and tap OK. Your region is pre-selected based on your IP address.
  4. Enter a valid email address, and tap Next.
  5. Create a password and tap Create Account. The password requirements are listed at the bottom of the screen. Tap the eyeball icon if you want to view what you are typing.
  6. Complete the multi-factor authentication (MFA) process.

Multi-factor authentication steps

Verify your email address

Enter the PIN from the email we sent you and tap Verify.

  • PIN codes are valid for 40 minutes.
  • If you haven't received the code after 90 seconds, tap Resend PIN Code.




Verify your phone number

Tap the phone number entry line to bring up a keypad.
Enter the phone number you wish to use for device verification and tap Next.

Optional: Select your country code by tapping the flag icon next to the phone number entry line.

If you prefer to not use SMS, the PIN code can be read to you by an automated voice call.
To choose this option, under Receive code by: select Voice call and tap Next.

Delete

Note

The SMS text option is for use with mobile phones and will not work with landline phone numbers. Blink uses this number to positively associate your device to the Blink app to ensure the person making changes is you. Your information is private and will not be used for any additional purposes or shared with third parties.

Learn more why we need your phone number. Contact Customer Service if you don't have a phone number.



A SMS text message containing the PIN code is sent to the phone number, and you are shown another PIN entry screen.

  • Example SMS text Message:
Your Blink verification code
is:
<123456>


Enter the PIN from the SMS text message we sent you and tap Verify.

  • PIN codes are valid for 40 minutes.
  • If you haven't received the code after 90 seconds, tap Resend PIN Code.


When the phone verification step is complete, you are prompted to link your new Blink account to your Amazon account by tapping Link Accounts. If you don't want to link your account, select Skip to be sent to the Home screen without linking your accounts.

Note: This is an optional step, but we highly recommend linking your accounts at this time. Learn more about the benefits of linking your accounts.

Sign into your existing Amazon account. You will need to know your Amazon login email address and password. Once the link is established between accounts, tap Next.





Delete



Overview:
Adding the Blink Video Doorbell is just like other Blink devices.

  • Tap the "Add device" icon + in the Blink app home screen.
  • Scan the device QR code.
  • Create, or choose a system to attach it to.
  • Follow the in-app instructions to complete.

Where is the doorbell QR code?

The Blink doorbell has a QR code in the battery compartment to represent the device serial number (DSN).


  Doorbell with weather seal on back plate   Doorbell with weather seal on battery cover

If you need to change batteries, or view the QR code after you connect the back plate, use the opening key that was taped to the template, in the box.

Delete


The Blink Video Doorbell uses two AA batteries for primary power in every setting. You can add a Blink Subscription Plan‍ any time to receive cloud storage and other features.

Sync Module - When the doorbell is connected to a Sync Module system the batteries last up to two years and the doorbell is 'always awake' to receive commands at all times. A Sync Module 2 allows saving clips to Local Storage on your own USB drive without a subscription.

Wired - When the doorbell is connected to 16 - 24 volts AC wiring from a doorbell you already have, the Blink Video Doorbell is 'always awake' and able to receive commands at all times. This includes arming the system, starting Live View, taking thumbnail images, and updating settings. If the voltage is lower than 16 volts AC, you enter Event Response.

Event Response - With no Sync Module or wired connection, you are in "Event Response". To save batteries, Event Response puts the doorbell to sleep at 60 seconds, so you must press the doorbell button to wake it up and download any new settings, or to arm/disarm the system. For this reason, you cannot start doorbell actions from the Blink app, including Live View and taking a thumbnail.


How to install with a Sync Module

The best way to add the doorbell with Sync Module option, is to install the Sync Module first. That way, the Doorbell will be recognized and added more quickly.

Remember that the Sync Module must be close enough to the doorbell for full connectivity and the best experience. Make sure to set up the Sync Module near to where you will be mounting the doorbell, for the most reliable setup of both devices.

After installation, you can use the Blink app's signal strength indicator to help choose a location if you wish to move the Sync Module. Take note of the system name you create for the Sync Module.

Make sure that you download the most recent version of the Blink mobile app and have an account set up. This video quickly walks you through the in-app setup of your Sync Module 2. For detailed instructions, see the step-by-step process below.


Add a Sync Module and create a system

1. From the home screen, tap the + icon to add a device.

Add Device icon on the Blink app upper right corner


2. The Add Device screen displays all of your device options and tap Sync Module.

add camera and device screen of Blink app


3. Next, enter your Sync Module's serial number. Within the Blink app you can scan the QR code printed on the bottom of your device, or in the Quick Start Guide. You can also manually enter the serial number.

Note: The Blink app may require permission to access the camera on your mobile device in order to scan the QR code.

To learn where the QR code and serial number are located, tap Help me find my QR code and serial number at the bottom of the Scan QR Code screen.

put the QR code into the Blink app viewscreen. You can tap the camera image below to locate the serial number QR code.


4. Once the serial number is recognized, you are asked to create a new system by tapping the text entry box and providing a unique name. This name must be different from other system names you may have in your Blink account. Tap Continue after your new system name is entered.

Select or create a System


5. The Add Sync Module screen will instruct you to plug in your Sync Module and then wait for the light pattern of blinking blue and steady green.
Tap Discover Device when you see this pattern on your Sync Module.

Ready Sync Module light pattern blinking blue over steady green

Note: If you don't see the blinking blue light pattern, then you may need to reset the Sync Module. Learn more about how to reset the Sync Module.

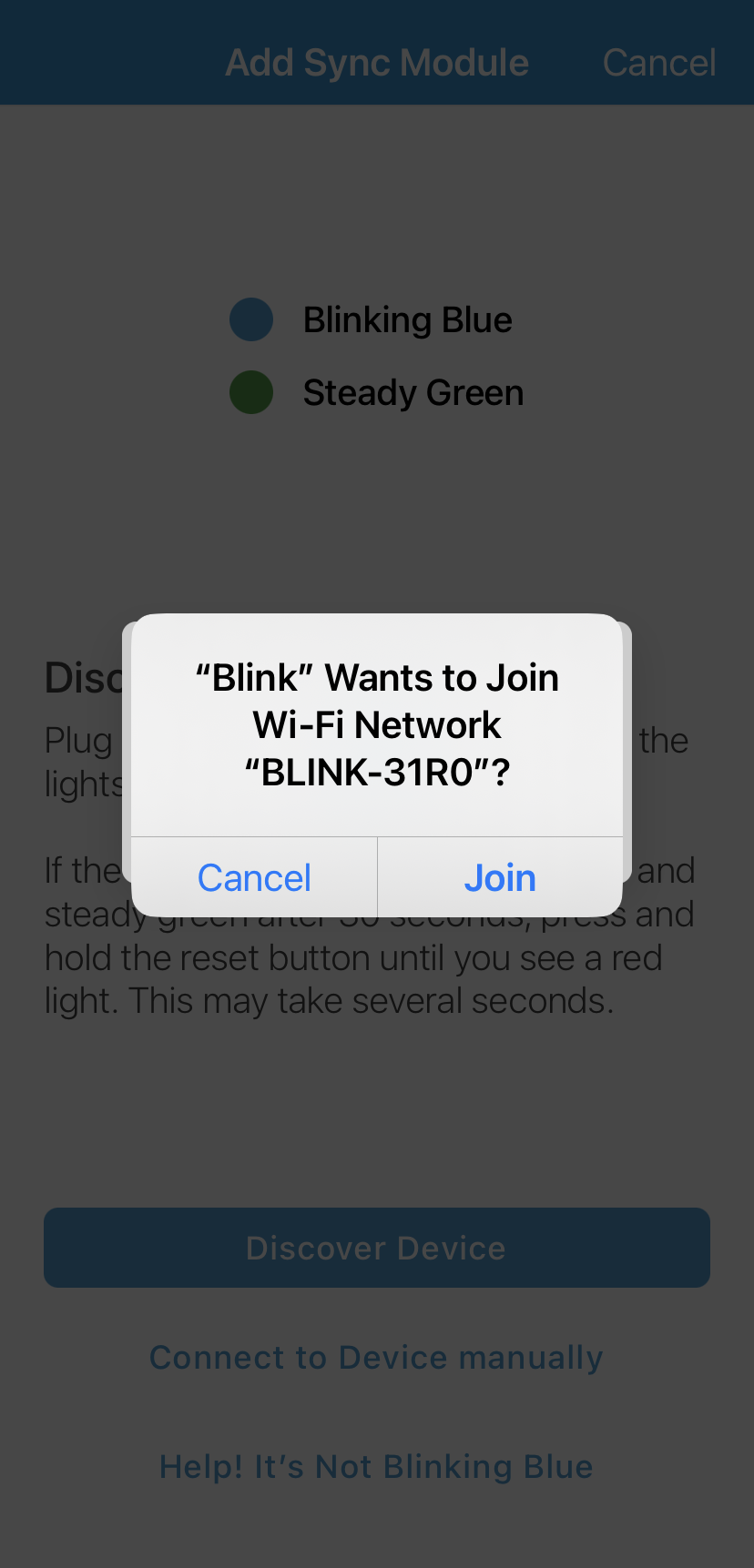

6. Next, the Blink app needs to connect to the Sync Module's Wi-Fi network. It's named “BLINK-" followed by four digits from the Sync Module serial number. Tap Join and then you are asked to join your local Wi-Fi network.

join Blink network app dialog


7. The Add Sync Module screen displays 2.4 GHz Wi-Fi networks within range. If you do not see your local Wi-Fi network, tap Refresh List at the bottom of the screen. The Sync Module stores network information for devices that are added to its system. Learn more about how to troubleshoot Wi-Fi connections.

add sync module to Wi-Fi internet


8. After you tap your Wi-Fi network name, you will see a password entry field. It is important to ensure your password is correct before entering it. Then tap Join to continue.

add Wi-Fi internet network password


9. You are then notified when your Sync Module has been added to your new system. Tap Done to complete the process and view the Welcome screen where you can add a new camera.

Adding sync module steps complete


The new system name displays at the top of your Home screen and you will also see the Sync Module is added. A cloud icon settings icon shows a green connection line showing the Sync Module is communicating with the Blink servers. You can now tap the plus symbol +  to add a device.

home screen after system complete


Next, add your doorbell to the Sync Module system you just created.

Delete



Scan the QR code of your new Doorbell

1. From the Home screen of the Blink app, tap the blue "Plus" sign + in the upper right corner of the screen to add your new doorbell.


2. In the Add Device screen that opens, tap Blink video doorbell.

If it is the first time you are using the Blink app, a popup (image below) asks for permission to use the camera to scan the QR code on the back of your doorbell. This is just a convenient  way to enter the device serial number (DSN).

Tap OK to safely permit camera access, or tap Don't Allow and then enter the DSN manually.



The QR code and DSN are printed on a label inside the battery compartment.

3. If your doorbell is not open, insert the provided key and lift to separate the back plate slightly then push the doorbell toward the top of the back plate to release.

The metal key comes taped to the paper mounting template included in your doorbell packaging.



Make sure the QR code on the doorbell is in your camera view and in focus. Tap the flashlight icon to add more light if needed.

A green square appears when your phone camera 'understands' the QR code and you proceed to the next step.



Choose a system or create one

If you have already set up a Sync Module to use with the doorbell, choose that system, or create a new system for the doorbell to manage by itself.

Note: The Mini can act as a plug-in chime when it is on a system with a Blink Video Doorbell.


Sync Module Install

If a Sync Module is not detected, you are asked if you would like to install one now.

It is easiest to choose "Add without a Sync Module" and continue installing the doorbell, then add the Sync Module after.

If you choose to "Add a Sync Module", the doorbell serial number is forgotten, and QR code scanner opens for you to set up a Sync Module. When the Sync Module setup is complete, you end up at the home screen. To add your doorbell to the Sync Module system, tap the blue "Plus" sign + again to scan its QR code.


Power-up and Connect to the Doorbell's Wi-Fi

Your doorbell has either a back cover weather seal, or a battery cover weather seal. The Blink app guides you to insert the batteries for your product.


Back cover weather seal

Battery cover weather seal
chime wiring step
chime wiring step


Back cover seal

Insert the key, lift, or pull towards you, and slide the doorbell down slightly to release the pull the doorbell off.

chime wiring step

When the back plate is removed, tap Continue.

Next, you are shown where to put 2 size AA lithium non-rechargeable batteries.

chime wiring step

When the batteries are inserted correctly, a red LED flashes slowly to indicate the doorbell is ready to be installed.

Tap Continue.

Delete


Battery cover seal

Remove back plate, then press the release button on the battery cover, lift, and remove.

chime wiring step

When the back plate is removed, tap Continue.

Next, you are shown where to put 2 size AA lithium non-rechargeable batteries.

chime wiring step

When the batteries are inserted correctly, a red LED flashes slowly to indicate the doorbell is ready to be installed.

Tap Continue.

Delete


When the batteries are inserted correctly, a red LED flashes slowly to indicate the doorbell is ready to be installed. Tap Discover Device to complete doorbell installation.

Use the Not blinking Red? help link if you do not see a flashing red LED at the top of the ring.


Connect the app to your doorbell's "BLINK" network
When your doorbell is discovered, a popup asks if you want to connect the Blink app to the doorbell directly. This connection configures your system. You can safely tap Join.


Connect the doorbell to your Wi-Fi network

The available 2.4 GHz Wi-Fi networks in range of the doorbell are displayed. Select yours.

If you do not see your Wi-Fi network in the list, tap Refresh List to scan the area again. Be sure your Wi-Fi router is transmitting at 2.4 GHz.


Enter your Wi-Fi password and press "Continue". To be sure you enter the password correctly, tap the "eye" icon to view the characters.


When complete, you are shown a success screen. Tap "Continue" to go to the Home screen.




Mounting the doorbell

You have the choice to install the doorbell connected to your own wiring. Batteries are always the main power source, even when the Blink Video Doorbell is connected to powered wiring from an existing doorbell system.

chime wiring step

If you tap "Maybe Later", the mounting instructions are not presented, and the install process finishes with some introductory information.

If you wish to continue the mounting steps, choose if you will use existing powered wiring from a chime system.

How to mount without wiring

If you are mounting the Blink Video Doorbell in the place of your old doorbell button, but not using the wires, please use the provided wire caps to keep the wires from accidentally touching and activating the main chime or causing sparks.

Mounting is slightly different for each style of back plate, but they each use only two screws.

Two mounting holes
Three mounting holes

This back plate needs to form a weather tight seal with the doorbell. A flat sturdy placement is important.
This back plate does not need to form a weather tight seal. The seal is in the battery door, which gives the doorbell its IP-54 weather resistance rating.


Two hole back plate

Mounting Video

Prepare a location to mount the Blink Video Doorbell

Once you decide on proper placement‍, clean the surface well. The back plate needs to form a weather tight seal, so mounting on a flat sturdy surface is important.

To adjust the view 5º up-down, or 25º side-side, click to learn about installing a wedge or corner mount‍.

A paper template is included with your doorbell to show how far apart you drill the mounting holes. The template is shipped with the doorbell opening key attached. Save the key for future use. The same template also works for Wedge and Corner Mounts.


How do I mount on vinyl siding?

We recommend only using the included mounting kit. However, there are "screw-free" kits available to fit standard vinyl siding. Some good search terms are "surface block" and "vinyl siding wall plate".

To maintain a weather seal, both mounting holes must be covered if they are not being used. Waterproof tape is a recommended option. By design, the included mounting screws fill the space, keeping your doorbell weather resistant.

Delete

How do I attach the back plate before mounting?

We recommend only using the included mounting kit. If you prefer to mount in a way other than the mounting screws, the following video shows one way to connect the back plate to the doorbell before it is mounted.

To maintain a weather seal, both mounting holes must be covered if they are not being used. Waterproof tape is a recommended option. By design, the included mounting screws fill the space, keeping your doorbell weather resistant.

Delete

Should I install a Wedge or Corner Mount?

The wedge and corner mounts (included in some packages, or sold separately) can correct the doorbell view when the only available surface is angled, or you want to adjust the view.

  • Wedge changes the view 5º up-down
  • Corner Mount changes the view 25º side-side.


The camera in the doorbell has a field of view pointing straight out from the mounting surface. If the image does not capture the view you want, a Wedge offers 5° vertical tilt (up and down), and a Corner Mount offers 25° horizontal tilt (side to side). These accessories come in black or white to match your doorbell.

1637706873492-1637706873492.png1637704292416-1637704292416.png 1637706439151-right-side-black-corner.jpg1637704372689-1637704372689.png
Wedge (5º up and down) Corner Mount (25º left or right)

Click to visit the Amazon purchase page for the Wedge and Corner Mount accessories (external link, opens in a new browser window).


How to Install the Wedge or Corner Mount

Check the doorbell view and placement by pressing the doorbell button, and then in the Blink app, tap the notification you receive to enter Live View.

While in Live View, you are looking out of the doorbell camera. You can adjust the position and location to get the view you want, before drilling into your wall.

The included drill template works for the mounts and the doorbell.

1. Drill mounting holes.

Tape the template in place approximately 40 - 48 inches (102 -122cm) above the ground. If you want to use the wiring from a doorbell you already have, place the template so that the wires will reach through the central open area of the wedge.


2. Mount accessory then attach back plate.

The Wedge and Corner Mount accessories ship with a pair of shortened all-purpose screws. These screws are used to secure the back plate to the accessory ( ② in the image below). Use the pointed, regular-length screws to secure the accessory to your wall or surface ( in the image below). See image below for more details.

Note that the doorbell comes with two replacement terminal screws that are shorter and have very fine threads as compared to the accessory mounting screws.


1. Regular length multi-purpose screws attach the Wedge or Corner Mount to your location through slots in the accessory.

2. Shortened screws secure the back plate to attachment points molded into the Wedge and Corner Mount.


Doorbell shown attached to Wedge and back plate.
a Blink Wedge mount accessory providing 5 degrees of perspective change is shown by a numeral 1 to have regular length screws entering a slot molded into the accesory. To the right of that is an image depicting the blink video doorbell back plate being attached to the wedge accessory by shortened screws that are entering molded receptacles in the mounting accessory.


Click for detailed instructions

1. Use the longer pair of screws to secure the wedge or corner mount, first. Make sure to put the screws through the slot openings as shown.

Wired installation details

Back plate with screws Back plate with three mounting holes

Attach one doorbell wire to each machine screw on the back plate. Wire color is not a factor for this installation.
If needed, 2 extra screws are in the box.

Attach the back plate to the wedge or corner mount, with the shorter pair of screws, included in the accessory packaging.

Attach the back plate to the wedge or corner mount, with the shorter pair of screws, included in the accessory packaging.

Attach one doorbell wire to each terminal screw on the doorbell.
Wire color is not important here.
If needed, 2 extra screws are in the box.



Finally, use a two step motion to attach the doorbell to the back plate.

  1. Line up the pins on the back plate with the slots in the doorbell
  2. Press the doorbell firmly against the back plate, and then 'down' to make the two parts even at the bottom.
    You should feel/hear a slight click as the connection secures.




Now, attach the doorbell to the back plate by lining up the top and pivoting downward. Press until you feel or hear a click and the doorbell is secure.
Delete



3. Attach the doorbell and test.

Once the doorbell is in place, if it has already been set up, press the doorbell button and you will receive an alert notification. Tap the notification to see through the doorbell camera and make sure the view is what you want. If you have not set up the doorbell yet, visit Setting up your Blink Video Doorbell‍.

If you have set an Activity Zone or Privacy Zone, be aware of how they have been affected by the change in camera view. You may have to re-set the Activity or Privacy zones.

Click to learn more about Blink Video Doorbell Motion Detection‍.


Delete

How do I use wall anchors?

The wall anchors are made of white plastic and are to be used when the threads of the screw cannot dig into the material, such as with brick. You drill a hole large enough for the wall anchor to fit tightly into, then when you use the mounting screw, it's threads can hold securely.

  1. Drill a 7/32-inch (5.41 mm) hole, 1 inch (2.5 cm) deep.
  2. Insert the wall anchor until it is flush with the mounting surface.
  3. Continue with the installation.
Delete


Tools
You will need tape to hold the template in place, a screwdriver, a drill, and the clear plastic pouch with screws and wall anchors. To drill mounting holes, select the bit size you need:

  • Just the screws:  3/32-inch (2.375 mm)
  • Wall anchor: 7/32-inch (5.41 mm)


Delete

Caution

Electrical Shock HAZARD. If you are drilling into a wall or replacing an existing chime anywhere near live electrical wires, it is important to turn off all power to the location from the circuit breaker. Please consult a qualified person with experience installing doorbell cameras.


Tape the paper template 40 - 48 inches (101.6 - 121.9 cm) above the floor.

Drill two guide-holes approximately one inch deep (2.5 cm).

For mounting on brick, stucco, or drywall-type materials, you may want to use the included white plastic wall anchors. Wall anchors grip the threads and provide outward pressure against the walls of a drilled hole. Included wall anchors fit the hole from a 7/32-inch (5.41 mm) drill bit.



Remove the paper template.

Secure exposed wires if necessary.
If you are not using existing wires, but they are present, twist a grey terminal cap onto each exposed wire tip to prevent dangerous sparking or other issues. Find two terminal caps in the accessory bag with the mounting screws.


Attach the back plate to your surface with two screws (do not over tighten)
All-purpose screws are included with two wall anchors and wire terminal end caps in a clear plastic pouch. Use only two screws to mount the back plate.

chime wiring step
Note: Mount the back plate on a firm, flat surface, to form a weather seal with the doorbell. We recommend only using the included mounting kit, but if you do not, the mounting holes must be covered with a watertight seal.
Delete

Three hole back plate for weather resistant doorbell

The back plate with three holes is not designed to provide a seal from weather, because the Video Doorbell it comes with is rated IP-54 weather resistant. For best installation, we recommend using the top and bottom mounting holes on a flat surface.

For uneven or smaller surfaces, use the top and middle holes. Be careful not to over tighten the middle screw.  If a gap appears between the back plate and the doorbell, loosen the middle screw slightly.

Mounting Video


Prepare a location to mount the Blink Video Doorbell

Once you decide on proper placement‍, clean the surface well.

To adjust the view 5º up-down, or 25º side-side, click to learn about installing a wedge or corner mount‍.

A paper template is included with your doorbell to show how far apart you drill the mounting holes. The template is shipped with the doorbell opening key attached. Save the key for future use. The same template works for Wedge and Corner Mounts.


How do I mount on vinyl siding?

We recommend only using the included mounting kit. However, there are "screw-free" kits available to fit standard vinyl siding. Some good search terms are "surface block" and "vinyl siding wall plate".

When mounted, the three-holed back plate does not need to form a weather tight seal. The seal is in the battery door, which gives the doorbell its IP-54 weather resistance rating.

Delete

Should I install a Wedge or Corner Mount?

The wedge and corner mounts (included in some packages, or sold separately) can correct the doorbell view when the only available surface is angled, or you want to adjust the view.

  • Wedge changes the view 5º up-down
  • Corner Mount changes the view 25º side-side.


The camera in the doorbell has a field of view pointing straight out from the mounting surface. If the image does not capture the view you want, a Wedge offers 5° vertical tilt (up and down), and a Corner Mount offers 25° horizontal tilt (side to side). These accessories come in black or white to match your doorbell.

1637706873492-1637706873492.png1637704292416-1637704292416.png 1637706439151-right-side-black-corner.jpg1637704372689-1637704372689.png
Wedge (5º up and down) Corner Mount (25º left or right)

Click to visit the Amazon purchase page for the Wedge and Corner Mount accessories (external link, opens in a new browser window).


How to Install the Wedge or Corner Mount

Check the doorbell view and placement by pressing the doorbell button, and then in the Blink app, tap the notification you receive to enter Live View.

While in Live View, you are looking out of the doorbell camera. You can adjust the position and location to get the view you want, before drilling into your wall.

The included drill template works for the mounts and the doorbell.

1. Drill mounting holes.

Tape the template in place approximately 40 - 48 inches (102 -122cm) above the ground. If you want to use the wiring from a doorbell you already have, place the template so that the wires will reach through the central open area of the wedge.


2. Mount accessory then attach back plate.

The Wedge and Corner Mount accessories ship with a pair of shortened all-purpose screws. These screws are used to secure the back plate to the accessory ( ② in the image below). Use the pointed, regular-length screws to secure the accessory to your wall or surface ( in the image below). See image below for more details.

Note that the doorbell comes with two replacement terminal screws that are shorter and have very fine threads as compared to the accessory mounting screws.


1. Regular length multi-purpose screws attach the Wedge or Corner Mount to your location through slots in the accessory.

2. Shortened screws secure the back plate to attachment points molded into the Wedge and Corner Mount.


Doorbell shown attached to Wedge and back plate.
a Blink Wedge mount accessory providing 5 degrees of perspective change is shown by a numeral 1 to have regular length screws entering a slot molded into the accesory. To the right of that is an image depicting the blink video doorbell back plate being attached to the wedge accessory by shortened screws that are entering molded receptacles in the mounting accessory.


Click for detailed instructions

1. Use the longer pair of screws to secure the wedge or corner mount, first. Make sure to put the screws through the slot openings as shown.

Wired installation details

Back plate with screws Back plate with three mounting holes

Attach one doorbell wire to each machine screw on the back plate. Wire color is not a factor for this installation.
If needed, 2 extra screws are in the box.

Attach the back plate to the wedge or corner mount, with the shorter pair of screws, included in the accessory packaging.

Attach the back plate to the wedge or corner mount, with the shorter pair of screws, included in the accessory packaging.

Attach one doorbell wire to each terminal screw on the doorbell.
Wire color is not important here.
If needed, 2 extra screws are in the box.



Finally, use a two step motion to attach the doorbell to the back plate.

  1. Line up the pins on the back plate with the slots in the doorbell
  2. Press the doorbell firmly against the back plate, and then 'down' to make the two parts even at the bottom.
    You should feel/hear a slight click as the connection secures.




Now, attach the doorbell to the back plate by lining up the top and pivoting downward. Press until you feel or hear a click and the doorbell is secure.
Delete



3. Attach the doorbell and test.

Once the doorbell is in place, if it has already been set up, press the doorbell button and you will receive an alert notification. Tap the notification to see through the doorbell camera and make sure the view is what you want. If you have not set up the doorbell yet, visit Setting up your Blink Video Doorbell‍.

If you have set an Activity Zone or Privacy Zone, be aware of how they have been affected by the change in camera view. You may have to re-set the Activity or Privacy zones.

Click to learn more about Blink Video Doorbell Motion Detection‍.


Delete

How do I use wall anchors ?

The wall anchors are made of white plastic and are to be used when the threads of the screw cannot dig into the material, such as with brick. You drill a hole large enough for the wall anchor to fit tightly into, then when you use the mounting screw, it's threads can hold securely.

  1. Drill a 7/32-inch hole, 1 inch (2.5 cm) deep.
  2. Insert the wall anchor until it is flush with the mounting surface.
  3. Continue with the installation.
Delete


Tools

You will need tape to hold the template in place, a screwdriver, a drill, and the clear plastic pouch with screws and wall anchors. To drill mounting holes, select the bit size you need:

  • Just the screws:  3/32-inch (2.375 mm)
  • Wall anchor: 7/32-inch (5.41 mm)


Delete

Caution

Electrical Shock HAZARD. If you are drilling into a wall or replacing an existing chime anywhere near live electrical wires, it is important to turn off all power to the location from the circuit breaker. Please consult a qualified person with experience installing doorbell cameras.


Tape the paper template 40 - 48 inches (102 - 122 cm) above the floor.

Drill two guide-holes approximately one inch deep (2.5 cm).

For mounting on brick, stucco, or drywall-type materials, you may want to use the included white plastic wall anchors. Wall anchors give the mounting screws a way to grip the threads and provide outward pressure against the walls of a drilled hole. Included wall anchors fit the hole from a 7/32-inch (5.41 mm) drill bit.



Remove the paper template.

Secure exposed wires if necessary.
If you are not using existing wires, but they are present, twist a grey terminal cap onto each exposed wire tip to prevent dangerous sparking or other issues. Find two terminal caps in the accessory bag with the mounting screws.



Attach the back plate to your surface with two screws (do not over tighten)
All-purpose screws are included with two wall anchors and wire terminal end caps in a clear plastic pouch. Use two screws even if there are three holes in the back plate.

For a flat surface, use the top and bottom screws. For uneven or shorter mounting locations, use the top and middle screw.

chime wiring step

Note: The back plate with three mounting holes does not need to form a weather seal with the doorbell. IP-54 weather resistance is provided by the battery cover.

Delete


Install is complete!

Now check your placement using Live View, or if your doorbell is in Event Response, press the ringer button, then tap the notification that appears in your mobile device.

To adjust the view 5º up-down, or 25º side-side, click to learn about installing a wedge or corner mount‍.


Other install options

Sync Module
Using a Sync Module is strongly recommended to improve doorbell battery life. With our Sync Module 2, you can save daily cloud backups onto a compatible USB flash drive, or save motion events and ringer button press video clips without a subscription.

Wired to 16-24 vAC chime
Ring your existing chime when the doorbell is pressed, and use on-demand live view with two-way talk.

Click to visit the Blink Video Doorbell FAQ‍.


Delete


How to Mount with Wiring

If your chime wiring power is less than 16 volts AC, the Blink Video Doorbell enters Event Response, and you are not able to directly control the camera from the Bink app. In Event Response, all setting changes must be completed by pressing the doorbell ringer button to 'wake it up' and update the configuration, or wait for the once-daily check-in.
Please view the next section "Event Response" for more details.

Note: Batteries are required to be installed into the doorbell even if you are using a wired connection.

Delete

Warning

Electrical shock hazard. Disconnect power to the installation area at your circuit breaker or fuse box before beginning installation. Always use caution when handling electrical wiring. Please consult a qualified individual familiar with video doorbells.

Completing the Mount with wiring doorbell installation

  1. Once the Blink Video Doorbell has been added to your system and you have chosen to complete a wired connection, the following screen appears in the Blink app. When you have the required items (the Blink Video Doorbell kit, a power drill, and tape), tap Continue.

    Blink Video Doorbell Setup Screen showing the kit a drill sticky tape for the template

  2. Confirm your chime fits within these limits: 16 - 24 volts AC at 50 - 60Hz, and 40VA maximum. If your chime system has less than 16 VAC, it will activate the chime when the doorbell is pressed, but your system enters Event Response‍ mode.

    a caution screen that the doorbell is only compatible with 16 to 24 volts of alternating current at fifty or sixty hertz, and not more than fourty volt-amps

  3. Tap Agree and Continue and follow the in-app instructions to turn off electric power to the doorbell and chime and then tap Continue.

    image of a power breaker showing that all power must be cut off from the wires you will attach the doorbell to

  4. Continue to follow the in-app instructions and remove your old doorbell. Corrosion and weathering can prevent the wires from conducting electricity. If corrosion is present on the wires, clean wires as needed.

    remove old doorbell image

  5. Are you installing a wedge or corner mount to adjust the camera angle? If no, skip to step 7.

    a wedge and a corner mount

  6. Connect the wires coming out of your wall to the screws on the back of your Blink Video Doorbell. If you have trouble connecting the wires coming out of your wall to the back your doorbell, use the provided wire extensions and wire nuts. I doesn't matter which wire connects to which screw. Tug gently on the wires to make sure the wire connection is secure.

Installing a Wedge or Corner mount

If you wish to install a wedge or corner mount to adjust your camera view, use the template from your doorbell to drill the mounting holes, and use the included shortened screws to connect the camera's back plate to the mount.

Tap Yes in the Blink app for instructions to install the wedge or corner mount. To switch the view angle from one side to the other, turn the whole mount 180º.

The camera in the doorbell has a field of view pointing straight out from the mounting surface. If the image does not capture the view you want, a Wedge offers 5° vertical tilt (up and down), and a Corner Mount offers 25° horizontal tilt (side to side). These accessories come in black or white to match your doorbell.

1637706873492-1637706873492.png1637704292416-1637704292416.png 1637706439151-right-side-black-corner.jpg1637704372689-1637704372689.png
Wedge (5º up and down) Corner Mount (25º left or right)

Click to visit the Amazon purchase page for the Wedge and Corner Mount accessories (external link, opens in a new browser window).


How to Install the Wedge or Corner Mount

Check the doorbell view and placement by pressing the doorbell button, and then in the Blink app, tap the notification you receive to enter Live View.

While in Live View, you are looking out of the doorbell camera. You can adjust the position and location to get the view you want, before drilling into your wall.

The included drill template works for the mounts and the doorbell.

1. Drill mounting holes.

Tape the template in place approximately 40 - 48 inches (102 -122cm) above the ground. If you want to use the wiring from a doorbell you already have, place the template so that the wires will reach through the central open area of the wedge.


2. Mount accessory then attach back plate.

The Wedge and Corner Mount accessories ship with a pair of shortened all-purpose screws. These screws are used to secure the back plate to the accessory ( ② in the image below). Use the pointed, regular-length screws to secure the accessory to your wall or surface ( in the image below). See image below for more details.

Note that the doorbell comes with two replacement terminal screws that are shorter and have very fine threads as compared to the accessory mounting screws.


1. Regular length multi-purpose screws attach the Wedge or Corner Mount to your location through slots in the accessory.

2. Shortened screws secure the back plate to attachment points molded into the Wedge and Corner Mount.


Doorbell shown attached to Wedge and back plate.
a Blink Wedge mount accessory providing 5 degrees of perspective change is shown by a numeral 1 to have regular length screws entering a slot molded into the accesory. To the right of that is an image depicting the blink video doorbell back plate being attached to the wedge accessory by shortened screws that are entering molded receptacles in the mounting accessory.


Click for detailed instructions

1. Use the longer pair of screws to secure the wedge or corner mount, first. Make sure to put the screws through the slot openings as shown.

Wired installation details

Back plate with screws Back plate with three mounting holes

Attach one doorbell wire to each machine screw on the back plate. Wire color is not a factor for this installation.
If needed, 2 extra screws are in the box.

Attach the back plate to the wedge or corner mount, with the shorter pair of screws, included in the accessory packaging.

Attach the back plate to the wedge or corner mount, with the shorter pair of screws, included in the accessory packaging.

Attach one doorbell wire to each terminal screw on the doorbell.
Wire color is not important here.
If needed, 2 extra screws are in the box.



Finally, use a two step motion to attach the doorbell to the back plate.

  1. Line up the pins on the back plate with the slots in the doorbell
  2. Press the doorbell firmly against the back plate, and then 'down' to make the two parts even at the bottom.
    You should feel/hear a slight click as the connection secures.




Now, attach the doorbell to the back plate by lining up the top and pivoting downward. Press until you feel or hear a click and the doorbell is secure.
Delete



3. Attach the doorbell and test.

Once the doorbell is in place, if it has already been set up, press the doorbell button and you will receive an alert notification. Tap the notification to see through the doorbell camera and make sure the view is what you want. If you have not set up the doorbell yet, visit Setting up your Blink Video Doorbell‍.

If you have set an Activity Zone or Privacy Zone, be aware of how they have been affected by the change in camera view. You may have to re-set the Activity or Privacy zones.

Click to learn more about Blink Video Doorbell Motion Detection‍.

Delete


Mount the doorbell and power on

Note: If your back plate has pins, use caution when securing the doorbell.

  1. Align the top edge of your doorbell to the back plate.
  2. Push it firmly against the back plate until you hear and feel a slight click to confirm it is secure. The doorbell is now secure and can only be removed by inserting the pin tool at the bottom of it.
  3. Next, you turn the power back on and continue to follow the in-app instructions.
    Note: If the power level is not compatible, your doorbell will default to Event Response mode. Tap Continue.
  4. Next, you are asked to select whether you have a mechanical or digital chime. A mechanical chime makes sound by a physical hammer striking a metal bell or bar. A digital chime plays an electronic recording. If you are need help identifying your chime, tap I'm not sure which chime I have to learn about house chimes. Once identified, select your chime and tap Continue.
  5. When you make a chime selection, the Blink app will present a calibration screen that is appropriate. Learn more about chime calibration.

  6. If the connection is successful, tap Done. Your Blink Video Doorbell is ready to be used.

Delete


If you have not connected a Sync Module, and you are not connected to wiring (or if your wiring provides less than 16 volts AC) you enter Event Response. Click the title below for more details.

Event Response

What is Event Response mode?

If your Blink Video Doorbell is not connected to a Sync Module 2 or is not connected to compatible chime wiring, the doorbell enters into Event Response mode.

When your Blink Video Doorbell is operating in Event Response mode, features such as Live View and two-way audio are only available for doorbell presses and when motion is detected.

Once a Sync Module 2 is added to the doorbell's system, or the doorbell is connected to compatible chime wiring, the doorbell automatically exits Event Response mode.



Using the Blink Video Doorbell with batteries

Your Blink Video Doorbell is powered by two AA lithium batteries. Adding your doorbell to a Sync Module 2 and/or connecting it to your existing chime's wires can extend battery life. However, batteries are the main source of power for the doorbell and are required for your Blink Video Doorbell to function. Battery performance is directly related to the amount of use.


Wondering which features are available in Event Response mode? See the table or detailed descriptions below to view your options. More features are available when you sign up for a Blink Subscription Plan.


Event Response mode features


Event Response Event Response with Subscription Plan
Motion Notifications Yes Yes
Chime App Notifications Yes Yes
Live View through Blink app
Yes. Tap motion notifications within 60 seconds for Live View. Not accessed directly in the app. Yes. Tap notifications within 60 seconds for Live View. Not accessed directly in the app.
Live View through Alexa
Yes
Yes
Save Motion Clips (video) No Yes
Save Live Views No Yes
Photo Capture No Yes
Photo Thumbnail No Yes (Only after a doorbell press or a motion event)
Delete

1. Live View and two-way audio (with or without a Blink Subscription Plan)

While your Blink Video Doorbell is in Event Response mode, you can't access Live View from your Blink App. However, Live View and two-way audio are available when:

  1. Your Blink Video Doorbell ringer is pressed.
  2. Your system is Armed for Motion Detection and your Blink Video Doorbell detects motion.

Your mobile device will send you a push notification when either of these two events happen. Tap the notification within 60 seconds to enter a Live View session with two-way audio.

2. Viewing and saving clips

Note: An active Blink Subscription Plan is required to save motion clips (video). Saved motion clips from your doorbell appear in Clips with a bell icon  next to the clip thumbnail.

Without a subscription, Live View and motion clips are not saved.

  • While in Event Response mode, your Blink Video Doorbell displays clips as a Non Media Event in the thumbnail area. This indicates an event happened, but nothing can be watched.

3. Photo Capture

Note: To use Photo Capture while in Event Response mode, you must have an active Blink Subscription Plan and your doorbell must be armed. The Photo Capture setting for your Blink Video Doorbell is off by default.

  • Photo Capture stores a photo every hour. If there are no doorbell presses or motion events, the photos are compressed into a short video that you can view in the Clips section of the app.
  • When a doorbell press or motion event happens, any previous Photo Captures are converted to your clip list, so the new event can be processed right away. Each time Photo Capture stops, you receive a video of the images taken up to that point.
  • Learn more about Photo Capture in the Photo Capture FAQ.

4. Photo Thumbnail

Note: An active Blink Subscription Plan is required for Photo Thumbnails.

  • Photo thumbnails can't be generated directly within the app while the doorbell is in Event Response mode.
  • If you don't have a Blink Subscription Plan, your Event Response mode Blink Video Doorbell will be gray while on the home screen.
  • The thumbnail is updated each time the doorbell ringer button is pressed.

Unavailable Features

These features are not available when your doorbell is in Event Response mode even if you have a Blink Subscription Plan. Once a Sync Module 2 is added to the doorbell's system, or the doorbell is connected to compatible chime wiring, the doorbell automatically exits Event Response mode. These features will then become available.

  • Access Live View directly from the Blink app
  • Scheduling
  • Zones

In Event Response mode, you must press the doorbell button to:

  • Arm or Disarm the camera.

  • Turn Motion Detection on or off.

  • Update any new Settings changes.

Note: If the button isn't pressed, your doorbell checks in once every 24 hours to automatically download any new setting changes.




Additional resources

If you are interested in a adding your Blink Video Doorbell to a Sync Module 2, or connecting it your existing chime wiring, see these articles for more information:


Delete


Setup complete
The image below shows the newly installed "Doorbell" system having a doorbell named as its serial number, and a Sync Module connected to the cloud. The grey area shows that a thumbnail image has not been set. If you did not set up a Sync Module, its banner is not present.

Tap the "G8T1-..." text to change the name of your doorbell.

Tap the home screen appearance after installing doorbell and sync module to the same system icon to adjust Doorbell Settings‍ like chime volume, motion detection, and speaker volume.
 chime wiring step


Delete

Info

If you choose to mount the doorbell later, you can find the Mounting Instructions in the Doorbell Settings screen.


Helpful tips

If your doorbell is not found, an error screen appears and you are invited to retry. Tap Retry

The doorbell notifies you if it is ready by flashing a red LED in the ring around the doorbell button on the front.

There are two ways to reset the doorbell.

  1. (Preferred) Remove the batteries for five seconds, replace the batteries, then wait for the red LED to blink.
  2. (Not recommended) Factory Reset - Press and hold the reset button until the red light flashes.

If you do not see LED lights and you are sure that the batteries are fresh, please contact Customer Support.





Can’t find what you’re looking for?

Contact Support
